Steel wire for engineering applications
High quality wire results from the control of both raw materials and the wire drawing process. At Wire Supplies we are able to produce high quality wire for hte following applications:
Wire for mechanical springs
- A
pplication: Compression, extension and torsion springs - Size range: 0.70mm to 12.50mm
- Tensile strenght: As per EN 10270-1
- Coating: Phosphated
- Packaging: Supplied in coils or on cardboard cores up to 800kg
Wire for woven wire screens
Size range: 0.90mm to 12.50mm- Packaging: Supplied in coils or on cardboard cores up to 1200kg
Wire for general engineering applications
Wire is manufactured for a variety of applications such as:
- Wire for welding electrodes
- Steel wool wire
- Wire for ducting reinforcements
- Washer wire
- Masonry nail wire
- Filter wire
- Balling wire
- Size range: 0.70mm to 12.50mm
- Tensile strenght: As per customer requirements
- Condition: Hard drawn or spherodise annealled
- Coating: Phosphated
- Packaging: Supplied in coils or on cardboard cores

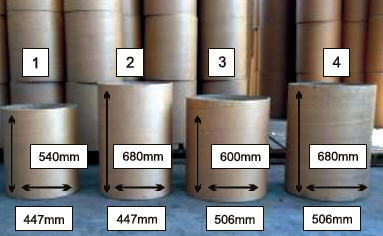

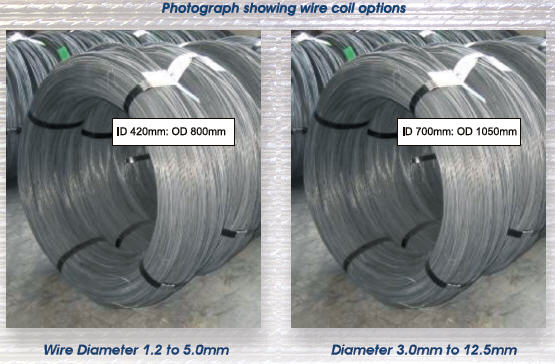

Packaging Options
Core 1: Wire diameter: 1.2mm – 4.8mm, mass 500 – 800kg
Core 2: Wire diameter: 1.2mm – 4.8mm , mass 650- 800kg
Core 3: Wire diameter: 1.8mm – 4.3mm , mass 800 – 950kg
Core 4: Wire diameter: 1.8mm – 4.3mm , mass 800 – 1200kg
